Understand and Implement the Backpropagation Algorithm From Scratch In Python
It’s very important have clear understanding on how to implement a simple Neural Network from scratch. In this Understand and Implement the Backpropagation Algorithm From Scratch In Python tutorial we go through step by step process of understanding and implementing a Neural Network. We will start from Linear Regression and use the same concept to build a 2-Layer Neural Network.Then we will code a N-Layer Neural Network using python from scratch.As prerequisite, you need to have basic understanding of Linear/Logistic Regression with Gradient Descent.
Let’s see how we can slowly move towards building our first neural network.
Linear Regression

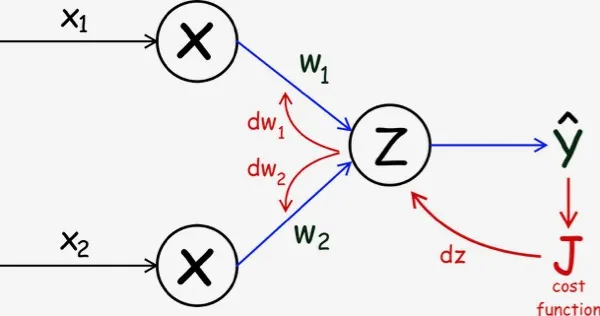

Here we have represented Linear Regression using graphical format (Bias b is not shown). As you see in the below diagram, we have two input features ( \(x_1, x_2\) ). Z represents the linear combination of the vectors w. The node with Z can also be named as hidden unit, since X & Y are visible ( for training ) and Z is something defined inside the model.
We can write the equation for predicting values using above linear regression as (this is shown using blue arrow), \(\hat{y}= z = b+x_1w_1+x_2w_2\)
So in order to find the best w, we need to first define the cost function J.To use gradient descent, take derivative of the cost function J w.r.t w and b, then update w and b by a fraction (learning rate) of dw and db until convergence (this is shown using red arrow). We can write dw and db as follows ( using chain rule ).
And the gradient descent equation for updating w and b are,

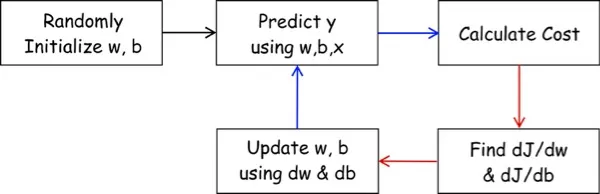

In summary, first we predict the \(\hat{y}\), then using this we calculate the cost, after that using gradient descent we adjust the parameters of the model. This happens in a loop and eventually we learn the best parameters (w and b ) to be used in prediction. The above picture depicts the same.
Logistic Regression
Here we will try to represent Logistic Regression in the same way. Mathematically Logistic regression is different than Linear Regression in two following ways:
- Logistic Regression has a different Cost Function
J - Apply a non-linear transformation (Sigmoid) on
Zto predict probability of class label ( Binary Classification )
As you see in the below diagram the blue arrow indicates the Forward Propagation.
Here are the steps of Forward Propagation in Logistic Regression. ( Matrix Format )
\[\begin{align} Z=W^TX+b \\ \hat{y}= A = \sigma(Z) \end{align}\]The Gradient Descent ( a.k.a Backpropagation ) in Logistic Regression has an additional derivative to calculate.
\[\begin{align} \frac{dJ}{dW}=\frac{dJ}{dA}\frac{dA}{dZ}\frac{dZ}{dW} \\ \frac{dJ}{db}=\frac{dJ}{dA}\frac{dA}{dZ}\frac{dZ}{db} \end{align}\]The gradient descent equation for updating w and b will be exactly same as Linear Regression (They are same for Neural Network too),
The process flow diagram is exactly the same for Logistic Regression too.
We can say that Logistic Regression is a 1-Layer Neural Network. Now we will extend the idea to a 2-Layer Neural Network.
2-Layer Neural Network
Extend the same concept to a 2-Layer Neural Network. Refer the below diagram ( bias term is not displayed ). There are some minor notation changes, such as, the super-script now denotes the layer number. We have added two more hidden units to our model. The vector W will have different dimension for each hidden layer.
In case you are new to Neural Network, imagine that the output of the first layer used as input to the next layer. Earlier in case of Logistic Regression we didn’t have multiple layers. These intermediate hidden layers provides a way to solve complex tasks (a.k.a non-linearity).
We can write the forward propagation in two steps as (Consider uppercase letters as Matrix).
\[\begin{align} Z^{[1]}=& W^{[1]}X+b^{[1]} \\ A^{[1]}=& \sigma(Z^{[1]}) \\ Z^{[2]}=& W^{[2]}A^{[1]}+b^{[2]} \\ \hat{y}=& A^{[2]}=\sigma(Z^{[2]}) \end{align}\]Again, just like Linear and Logistic Regression gradient descent can be used to find the best W and b. The approach is basically same :
Define a cost function
Take derivative (dw, db) of the cost function J w.r.t w and b. Update w and b using dw, db.
The back propagation has been shown in the above diagram using the red arrows. Let’s find the dw and db using chain rule. This might look complicated, however if you just follow the arrows can you can then easily correlate them with the equation.
Finally, we will update w and as following, ( same as other algorithms)
As you see, technically the steps are same for Linear Regression, Logistic Regression and Neural Network.
In Artificial Neural Network the steps towards the direction of blue arrows is named as Forward Propagation and the steps towards the red arrows as Back-Propagation.
Backpropagation
One major disadvantage of Backpropagation is computation complexity. Just for 2 layer Neural Network with 2 hidden unit in layer one, we already have pretty complex equation to solve. Imagine the computation complexity for a network having 100’s of layers and 1000’s of hidden units in each layer. In order to solve this problem we can use dynamic programming.
The high level idea is to express the derivation of \(dw^{[l]}\) ( where l is the current layer) using the already calculated values ( \(dA^{[l+1]} , dZ^{[l+1]} etc\) ) of layer l+1. In nutshell, this is named as Backpropagation Algorithm.
We will derive the Backpropagation algorithm for a 2-Layer Network and then will generalize for N-Layer Network.
Derivation of 2-Layer Neural Network
For simplicity propose, let’s assume our 2-Layer Network only does binary classification. So the final Hidden Layer will be using a Sigmoid Activation function and our Cost function will be simply the Binary Cross Entropy Error Function used in Logistic Regression. The Activation function of the remaining hidden layer can be anything.
Why the above assumptions are important
Since the Backpropagation starts from taking derivative of the cost/error function, the derivation will be different if we are using a different activation function such as Softmax (at the final hidden layer only). Softmax can be used for MultiClass Classification, I will have a separate post for that.

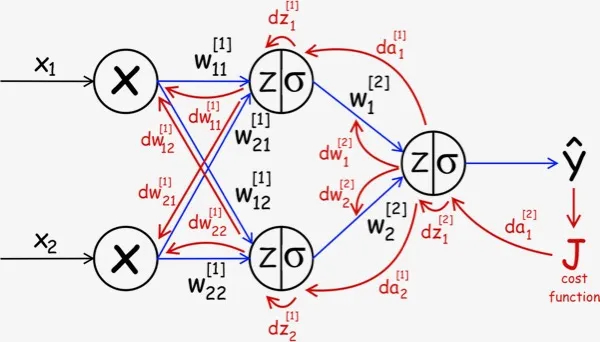

I will be referring the diagram above, which I drew to show the Forward and Backpropagation of the 2-Layer Network. So that you don’t have to scroll up and down, I am having the same diagram here again.
.webp)
Our first objective is to find \(\frac{dJ}{dW^{[2]}}\) where J is the cost function and \(W^{[2]}\) is a matrix of all the weights in the final layer. Using partial derivates we can define the following ( follow the path (red color) of the Backpropagation in the picture above if you are confused )
Our Cross Entropy Error Function for binary classification is :
Remember, in the above equation \(a^{[2]}\) is nothing but \(\hat{y}\)
Now we can define our \(\frac{dJ}{dW^{[2]}}\) as,
\[\frac{dJ}{dW^{[2]}} = \Bigg[ -\frac{Y}{A^{[2]}} + \frac{1-Y}{1- A^{[2]}} \Bigg] \Bigg[ A^{[2]} (1- A^{[2]})\Bigg] \Bigg[ A^{[2]}\Bigg]\]Let’s take a minute and understand what just happened here. The 1st part is the derivative of the Cost Function. As long as you know the derivate of log, you can see how this makes sense. ( I have omitted the 1/n factor here, we will ignore that for now, however during coding we will make sure to divide the result by n )
The 2nd part is the derivative of the Sigmoid activation function. Again, you can derive it by yourself just by knowing the derivate of \(e^x\) w.r.t x.
We already know \(Z^{[2]}\) from our forward propagation, \(Z^{[2]} = W^{[2]} A^{[1]} + b^{[2]}\)
The derivative of the above \(Z^{[2]}\) w.r.t \(W^{[2]}\) will simply be \(A^{[1]}\).
Simplifying the equation, we get
\[\require{cancel} \begin{align} \frac{dJ}{dW^{[2]}} &= \Bigg[ -Y + \cancel{YA^{[2]}} + A^{[2]} - \cancel{YA^{[2]}} \Bigg] \Bigg[ A^{[1]}\Bigg] \\ &=\Bigg[ A^{[2]} - Y\Bigg] \Bigg[ A^{[1]}\Bigg] \\ &= dZ^{[2]} A^{[1]} \end{align}\]Just note that, (we will use this later) \(dZ^{[2]} = \frac{dJ}{dZ^{[2]}} = \frac{dJ}{dA^{[2]}}\frac{dA^{[2]}}{dZ^{[2]}} = \Bigg[ A^{[2]} - Y\Bigg]\)
Similarly we can define \(\frac{dJ}{db^{[2]}}\) as,
\[\begin{align} \frac{dJ}{db^{[2]}} &= \frac{dJ}{dA^{[2]}}\frac{dA^{[2]}}{dZ^{[2]}}\frac{dZ^{[2]}}{db^{[2]}} \\ &=\Bigg[ A^{[2]} - Y\Bigg] \Bigg[ 1 \Bigg] \\ &=\Bigg[ A^{[2]} - Y\Bigg] \\ &=dZ^{[2]} \end{align}\]We will now move to the first layer, (following the red arrows in the picture)
\[\begin{align} \frac{dJ}{dW^{[1]}} &= \frac{dJ}{dA^{[2]}}\frac{dA^{[2]}}{dZ^{[2]}}\frac{dZ^{[2]}}{dA^{[1]}} \frac{dA^{[1]}}{dZ^{[1]}}\frac{dZ^{[1]}}{dW^{[1]}}\\ &= \frac{dJ}{dZ^{[2]}}\frac{dZ^{[2]}}{dA^{[1]}} \frac{dA^{[1]}}{dZ^{[1]}}\frac{dZ^{[1]}}{dW^{[1]}}\\ &= \Bigg[ A^{[2]} - Y\Bigg] \Bigg[ W^{[2]} \Bigg] \Bigg[ g'{\left ( Z^{[1]} \right )} \Bigg] \Bigg[ A^{[0]}\Bigg] \\ &= dZ^{[2]} W^{[2]} g'{\left ( Z^{[1]} \right )} A^{[0]} \\ & = dZ^{[1]} A^{[0]} \end{align}\]There are few points to note.
- First is reusability, the whole objective of dynamic programming is how to reuse already computed values in future computation. Thats the reason we are reusing \(dZ^{[2]}\).
- \(A^{[0]}\) here is nothing but our input X, however if you have more than 2 hidden layer, it will just be the activation output of the previous later.
- We can generalize this by equation for any layer except for the final hidden layer (The final layer equation depends on the Activaition of that layer).
Also need the following, \(\begin{align} \frac{dJ}{dA^{[1]}} &= \frac{dJ}{dA^{[2]}}\frac{dA^{[2]}}{dZ^{[2]}}\frac{dZ^{[2]}}{dA^{[1]}} \\ &= \frac{dJ}{dZ^{[2]}}W^{[2]} \\ &= dZ^{[2]}W^{[2]} \end{align}\)
Same for \(db^{[1]}\)
\[\begin{align} \frac{dJ}{db^{[1]}} &= \frac{dJ}{dA^{[2]}}\frac{dA^{[2]}}{dZ^{[2]}}\frac{dZ^{[2]}}{dA^{[1]}} \frac{dA^{[1]}}{dZ^{[1]}}\frac{dZ^{[1]}}{db^{[1]}}\\ &= \frac{dJ}{dZ^{[2]}}\frac{dZ^{[2]}}{dA^{[1]}} \frac{dA^{[1]}}{dZ^{[1]}}\frac{dZ^{[1]}}{db^{[1]}}\\ &= \Bigg[ A^{[2]} - Y\Bigg] \Bigg[ W^{[2]} \Bigg] \Bigg[ g'{\left ( Z^{[1]} \right )} \Bigg] \Bigg[ 1\Bigg] \\ &= dZ^{[2]} W^{[2]} g'{\left ( Z^{[1]} \right )} \\ & = dZ^{[1]} \end{align}\]Since we have the required derivatives, \(dW^{[2]}, db^{[2]}, dW^{[1]}, db^{[1]}\), it’s time that we define the full algorithm.
N-Layer Neural Network Algorithm
We will now define the full algorithm of a N-Layer Neural Network Algorithm by generalizing the equations we have derived for our 2-Layer Network.
\[\begin{align} & \bullet \text{Initialize } W^{[1]} .. W^{[L]}, b^{[1]} ... b^{[L]} \\ & \bullet \text{Set } A^{[0]} = X \text{ ( Input ) }, L = \text{Total Layers} \\ & \bullet \text{Loop } \text{epoch} = 1 \text{ to } \text{ max iteration } \\ & \rule{1cm}{0pt} \bullet \text{Forward Propagation} \\ & \rule{2cm}{0pt} \bullet \text{Loop } l=1 \text{ to } L-1 \\ & \rule{3cm}{0pt} \bullet Z^{[l]} = W^{[l]}A^{[l-1]}+b^{[l]} \\ & \rule{3cm}{0pt} \bullet A^{[l]} = g \left ( b^{[l]} \right ) \\ & \rule{3cm}{0pt} \bullet \text{Save } A^{[l]},W^{[l]} \text{ in memory for later use } \\ & \rule{2cm}{0pt} \bullet Z^{[L]} = W^{[L]}A^{[L-1]}+b^{[L]} \\ & \rule{2cm}{0pt} \bullet A^{[L]} = \sigma \left ( Z^{[L]} \right ) \\ & \rule{1cm}{0pt} \bullet \text{Cost } J= - \frac{1}{n} \bigg( Ylog \left ( A^{[2]} \right ) - \left ( 1-Y \right )log \left ( 1 - A^{[2]} \right ) \bigg)\\ & \rule{1cm}{0pt} \bullet \text{Backward Propagation} \\ & \rule{2cm}{0pt} \bullet dA^{[L]} = -\frac{Y}{A^{[L]}} + \frac{1-Y}{1- A^{[L]}} \\ & \rule{2cm}{0pt} \bullet dZ^{[L]} = dA^{[L]} \sigma'\left ( dA^{[L]} \right ) \\ & \rule{2cm}{0pt} \bullet dW^{[L]} = dZ^{[L]} dA^{[L-1]} \\ & \rule{2cm}{0pt} \bullet db^{[L]} = dZ^{[L]} \\ & \rule{2cm}{0pt} \bullet dA^{[L-1]} = dZ^{[L]} W^{[L]} \\ & \rule{2cm}{0pt} \bullet \text{Loop } l=L-1 \text{ to } 1 \\ & \rule{3cm}{0pt} \bullet dZ^{[l]} = dA^{[l]} g'\left ( dA^{[l]} \right ) \\ & \rule{3cm}{0pt} \bullet dW^{[l]} = dZ^{[l]} dA^{[l-1]} \\ & \rule{3cm}{0pt} \bullet db^{[l]} = dZ^{[l]} \\ & \rule{3cm}{0pt} \bullet dA^{[l-1]} = dZ^{[l]} W^{[l]} \\ & \rule{1cm}{0pt} \bullet \text{Update W and b} \\ & \rule{2cm}{0pt} \bullet \text{Loop } l=1 \text{ to } L \\ & \rule{3cm}{0pt} \bullet W^{[l]} =W^{[l]} -\alpha . dW^{[l]} \\ & \rule{3cm}{0pt} \bullet b^{[l]} =b^{[l]} -\alpha . db^{[l]} \end{align}\]The algorithm above is easy to understand. Just the generalized version of our previous derivation. Feel fee to ask me question in the comments section in case you have any doubt.
Python Implementation
At this point technically we can directly jump into the code, however you will surely have issues with matrix dimension. Hence, let’s make sure that we fully understand the matrix dimensions before coding. Once you do this coding should be very simple.
We will use MNIST dataset for our implementation.( You can google in case you are hearing about this dataset to know more about it. )
MNIST has 6000 28x28 dimension gray scale image as training and total 10 different class, however since we will be focusing on binary classification here, we will choose all images with label 5 and 8 (Total 11272). We will write a function which will return the data we need.
Each pixel will be a feature for us, so we will first flatten each image to 28x28 = 784 vector. The input dimension will be 11272 X 784.
In our Neural Network we will have total 2 layers, so it will be like 784 (input Layer)->196->1.
Forward Propagation - Layer 1
\(\begin{align} X &= \left ( 11272,784 \right ) \\ W^{[1]} &=\left ( 196, 784 \right ) \\ b^{[1]} &=\left ( 196, 1 \right ) \\ A^{[0]} &= X^T\\ &=\left ( 784,11272 \right ) \\ Z^{[1]} &=W^{[1]}A^{[0]}+b^{[1]} \\ &= \left ( 196,784 \right ) * \left ( 784,11272 \right ) + \left ( 196, 1 \right ) \\ &= \left ( 196,11272 \right ) + \left ( 196, 1 \right ) \\ &= \left ( 196,11272 \right ) \\ A^{[1]} &=g\left ( Z^{[1]} \right ) \\ &=\left ( 196,11272 \right ) \\ \end{align}\)
Forward Propagation - Layer 2
\(\begin{align} W^{[2]} &=\left ( 1, 196 \right ) \\ b^{[2]} &=\left ( 1, 1 \right ) \\ Z^{[2]} &=W^{[2]}A^{[1]}+b^{[2]} \\ &= \left ( 1, 196 \right ) * \left ( 196,11272 \right ) + \left ( 1, 1 \right ) \\ &= \left ( 1,11272 \right ) + \left ( 1, 1 \right ) \\ &= \left ( 1,11272 \right ) \\ A^{[2]} &=g\left ( Z^{[2]} \right ) \\ &=\left ( 1,11272 \right ) \\ \end{align}\)
Backward Propagation - Layer 2
\(\begin{align} Y^T &= \left ( 1, 11272 \right ) \\ dA^{[2]} &=-\frac{Y^T}{A^{[2]}} + \frac{1-Y^T}{1- A^{[2]}} \\ &=\left ( 1, 11272 \right ) \\ dZ^{[2]} &=dA^{[2]} g'(Z^{[2]}) \\ &= \left ( 1, 11272 \right ) * \left ( 1, 11272 \right )\\ &= \left ( 1, 11272 \right )\\ dW^{[2]} &=dZ^{[2]} \left ( A^{[1]} \right )^T \\ &=\left ( 1, 11272 \right ) * \left ( 11272,196 \right ) \\ &= \left ( 1, 196 \right )\\ db^{[2]} &=dZ^{[2]} \\ &= \left ( 1, 1 \right )\\ dA^{[1]} &= \left ( W^{[2]} \right )^T dZ^{[2]} \\ &=\left ( 196,1 \right ) * \left ( 1, 11272 \right )\\ &=\left ( 196, 11272 \right )\\ \end{align}\)
Backward Propagation - Layer 1
\(\begin{align} dZ^{[1]} &=dA^{[1]} g'(Z^{[1]}) \\ &= \left ( 196, 11272 \right ) * \left ( 196,11272 \right )\\ &= \left ( 196, 11272 \right )\\ dW^{[1]} &=dZ^{[1]} \left ( A^{[0]} \right )^T \\ &=\left ( 196, 11272 \right ) * \left ( 11272, 784 \right ) \\ &= \left ( 196, 784\right )\\ db^{[1]} &=dZ^{[1]} \\ &= \left ( 196, 1 \right )\\ \end{align}\)
Two important points:
- I haven’t fully explained the calculation for
babove. We need need to sum over all the rows to make sure the dimension of \(b^{[l]}\) and \(db^{[l]}\) matches. We will use numpy’saxis=1andkeepdims=Trueoption for this. - We have completely ignore the divide by
ncalculation (It was part of our cost function). So as a practice, whenever we are calculating the derivative ofWandb, we will divide the result byn.
We will be using a python library to load the MNIST data. It just helps us to focus on the algorithm. You can install it by running following command.
1
pip install python-mnist
We will create a class named ANN and have the following methods defined there.
1
2
3
4
5
6
ann = ANN(layers_dims)
ann.fit(train_x, train_y, learning_rate=0.1, n_iterations=1000)
ann.predict(train_x, train_y)
ann.predict(test_x, test_y)
ann.plot_cost()
We will get the data then preprocess it and invoke our ANN class.Our main will look like this. Also we should be able to pass the number of layers we need in our model. We dont want to fix the number of layers, rather want to pass that as an array to our ANN class.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
if __name__ == '__main__':
train_x, train_y, test_x, test_y = get_binary_dataset()
train_x, test_x = pre_process_data(train_x, test_x)
print("train_x's shape: " + str(train_x.shape))
print("test_x's shape: " + str(test_x.shape))
layers_dims = [196, 1]
ann = ANN(layers_dims)
ann.fit(train_x, train_y, learning_rate=0.1, n_iterations=1000)
ann.predict(train_x, train_y)
ann.predict(test_x, test_y)
ann.plot_cost()
The get_binary_dataset() function above will provide the Train and Test data. The dimension of the data will be as we have seen above. In the pre_process_data() function we will just normalize the data.
1
2
3
4
5
6
def pre_process_data(train_x, test_x):
# Normalize
train_x = train_x / 255.
test_x = test_x / 255.
return train_x, test_x
Below is the constructor of the ANN class. Here the layer size will be passed as an array.The self.parameters will be a dictonary object where we keep all the W and b.
1
2
3
4
5
6
def __init__(self, layers_size):
self.layers_size = layers_size
self.parameters = {}
self.L = len(self.layers_size)
self.n = 0
self.costs = []
The fit() function will first call initialize_parameters() to create all the necessary W and b for each layer.Then we will have the training running in n_iterations times. Inside the loop first call the forward() function. Then calculate the cost and call the backward() function. Afterwards, we will update the W and b for all the layers.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
def fit(self, X, Y, learning_rate=0.01, n_iterations=2500):
np.random.seed(1)
self.n = X.shape[0]
self.layers_size.insert(0, X.shape[1])
self.initialize_parameters()
for loop in range(n_iterations):
A, store = self.forward(X)
cost = np.squeeze(-(Y.dot(np.log(A.T)) + (1 - Y).dot(np.log(1 - A.T))) / self.n)
derivatives = self.backward(X, Y, store)
for l in range(1, self.L + 1):
self.parameters["W" + str(l)] = self.parameters["W" + str(l)] - learning_rate * derivatives[
"dW" + str(l)]
self.parameters["b" + str(l)] = self.parameters["b" + str(l)] - learning_rate * derivatives[
"db" + str(l)]
if loop % 100 == 0:
print(cost)
self.costs.append(cost)
Since the W1 parameter needs the number of features present in the training data, we will insert that in the layers_size array before invoking initialize_parameters()
In the initialize_parameters() function we loop through the layers_size array and store the parameters in the self.parameters dictionary.
1
2
3
4
5
6
7
def initialize_parameters(self):
np.random.seed(1)
for l in range(1, len(self.layers_size)):
self.parameters["W" + str(l)] = np.random.randn(self.layers_size[l], self.layers_size[l - 1]) / np.sqrt(
self.layers_size[l - 1])
self.parameters["b" + str(l)] = np.zeros((self.layers_size[l], 1))

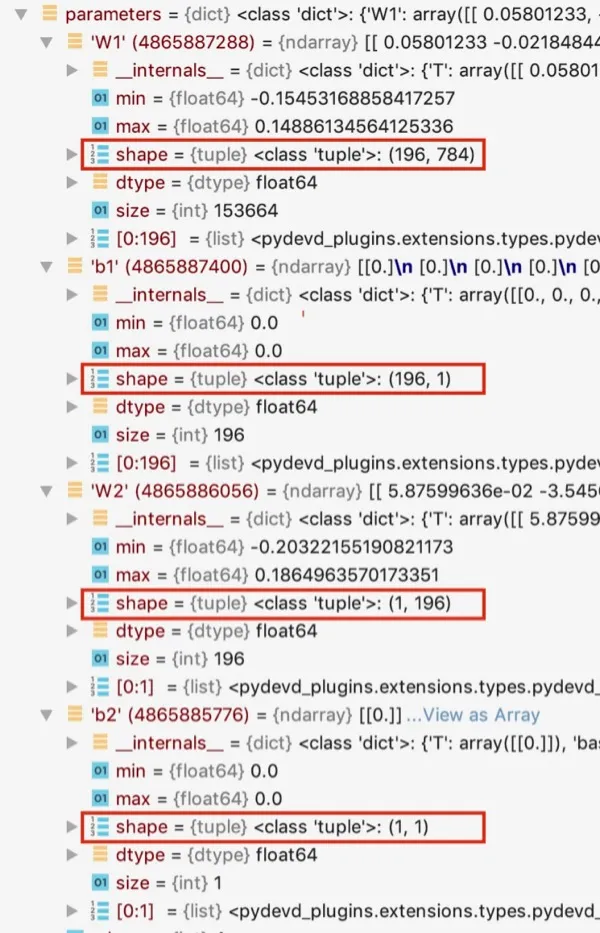

Once you run the code the self.parameters variable will look like this:
The forward() function is very easy to understand. Even though we are using Sigmoid Activation function in all the layers, we will have the calculation for the final layer outside of the loop so that we can easily plugin a Softmax function there (Softmax is not covered in this tutorial).
We will also create a new store dictionary object and keep the A,W and Z for each layer so that we can use them during backpropagation.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
def forward(self, X):
store = {}
A = X.T
for l in range(self.L - 1):
Z = self.parameters["W" + str(l + 1)].dot(A) + self.parameters["b" + str(l + 1)]
A = self.sigmoid(Z)
store["A" + str(l + 1)] = A
store["W" + str(l + 1)] = self.parameters["W" + str(l + 1)]
store["Z" + str(l + 1)] = Z
Z = self.parameters["W" + str(self.L)].dot(A) + self.parameters["b" + str(self.L)]
A = self.sigmoid(Z)
store["A" + str(self.L)] = A
store["W" + str(self.L)] = self.parameters["W" + str(self.L)]
store["Z" + str(self.L)] = Z
return A, store
Above in line 18, returned value A is basically the \(\hat{y}\).
In the backward() function like we have in the derivation, first calculate the dA,dW,db for the L'th layer and then in the loop find all the derivatives for remaining layers.
The below code is the same as the derivations we went through earlier. We keep all the derivatives in the derivatives dictionary and return that to the fit() function.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
def backward(self, X, Y, store):
derivatives = {}
store["A0"] = X.T
A = store["A" + str(self.L)]
dA = -np.divide(Y, A) + np.divide(1 - Y, 1 - A)
dZ = dA * self.sigmoid_derivative(store["Z" + str(self.L)])
dW = dZ.dot(store["A" + str(self.L - 1)].T) / self.n
db = np.sum(dZ, axis=1, keepdims=True) / self.n
dAPrev = store["W" + str(self.L)].T.dot(dZ)
derivatives["dW" + str(self.L)] = dW
derivatives["db" + str(self.L)] = db
for l in range(self.L - 1, 0, -1):
dZ = dAPrev * self.sigmoid_derivative(store["Z" + str(l)])
dW = 1. / self.n * dZ.dot(store["A" + str(l - 1)].T)
db = 1. / self.n * np.sum(dZ, axis=1, keepdims=True)
if l > 1:
dAPrev = store["W" + str(l)].T.dot(dZ)
derivatives["dW" + str(l)] = dW
derivatives["db" + str(l)] = db
return derivatives
Here is the code for the sigmoid() and sigmoid_derivative() function. In a later tutorial we will see how to use ReLu and Softmax.
1
2
3
4
5
6
def sigmoid(self, Z):
return 1 / (1 + np.exp(-Z))
def sigmoid_derivative(self, Z):
s = 1 / (1 + np.exp(-Z))
return s * (1 - s)
In the predict() function we wil just use the current W and b and compute the probability usimng forward() function. Then we will convert the probability to a predicted class 0 or 1.
1
2
3
4
5
6
7
8
9
10
11
12
def predict(self, X, Y):
A, cache = self.forward(X)
n = X.shape[0]
p = np.zeros((1, n))
for i in range(0, A.shape[1]):
if A[0, i] > 0.5:
p[0, i] = 1
else:
p[0, i] = 0
print("Accuracy: " + str(np.sum((p == Y) / n)))
Let’s look at the outout. You will get around 96% Train and Test Accuracy.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
train_x's shape: (11272, 784)
test_x's shape: (1866, 784)
0.7043777294167167
0.3094035971595143
0.19106252272122817
0.15772416612846746
0.14255528419489316
0.1336554279807337
0.12762011948747812
0.12313725638495653
0.11959735842488138
0.11667822494436252
Accuracy: 0.9599893541518808
Accuracy: 0.9598070739549842
The cost gradually does down as we run multiple iteration.

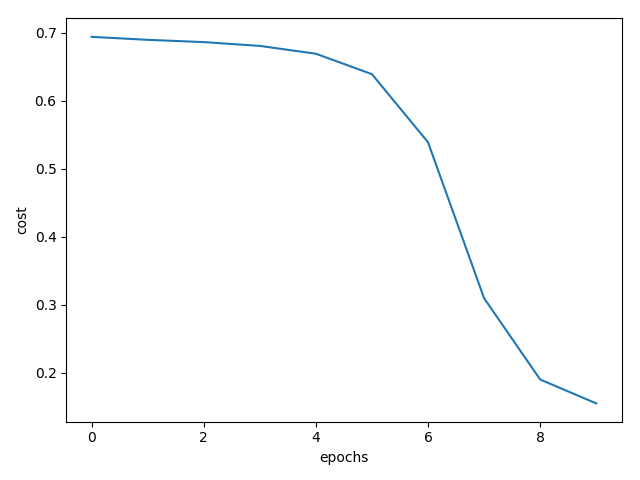

.webp)
The best part of writing the code in a generic way is we can easily try using different layer size. Let’s try the following:
1
layers_dims = [392,196,98,1]
Here is the result.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
train_x's shape: (11272, 784)
test_x's shape: (1866, 784)
0.6941917096801075
0.689779337934555
0.6864347273157968
0.680851445965145
0.6693297859482221
0.6392888056143693
0.5391389182596976
0.30972952941407295
0.1900953225522053
0.15499153620779857
Accuracy: 0.9491660752306601
Accuracy: 0.9555198285101825
Naturally, with the same data, iteration and learning rate the larger Network is performing poorly than the smaller one. If you were expecting a different result then let me know in the comment section and we can discuss about it.
Below is the full code of the ANN class:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
import numpy as np
import datasets.mnist.loader as mnist
import matplotlib.pylab as plt
class ANN:
def __init__(self, layers_size):
self.layers_size = layers_size
self.parameters = {}
self.L = len(self.layers_size)
self.n = 0
self.costs = []
def sigmoid(self, Z):
return 1 / (1 + np.exp(-Z))
def initialize_parameters(self):
np.random.seed(1)
for l in range(1, len(self.layers_size)):
self.parameters["W" + str(l)] = np.random.randn(self.layers_size[l], self.layers_size[l - 1]) / np.sqrt(
self.layers_size[l - 1])
self.parameters["b" + str(l)] = np.zeros((self.layers_size[l], 1))
def forward(self, X):
store = {}
A = X.T
for l in range(self.L - 1):
Z = self.parameters["W" + str(l + 1)].dot(A) + self.parameters["b" + str(l + 1)]
A = self.sigmoid(Z)
store["A" + str(l + 1)] = A
store["W" + str(l + 1)] = self.parameters["W" + str(l + 1)]
store["Z" + str(l + 1)] = Z
Z = self.parameters["W" + str(self.L)].dot(A) + self.parameters["b" + str(self.L)]
A = self.sigmoid(Z)
store["A" + str(self.L)] = A
store["W" + str(self.L)] = self.parameters["W" + str(self.L)]
store["Z" + str(self.L)] = Z
return A, store
def sigmoid_derivative(self, Z):
s = 1 / (1 + np.exp(-Z))
return s * (1 - s)
def backward(self, X, Y, store):
derivatives = {}
store["A0"] = X.T
A = store["A" + str(self.L)]
dA = -np.divide(Y, A) + np.divide(1 - Y, 1 - A)
dZ = dA * self.sigmoid_derivative(store["Z" + str(self.L)])
dW = dZ.dot(store["A" + str(self.L - 1)].T) / self.n
db = np.sum(dZ, axis=1, keepdims=True) / self.n
dAPrev = store["W" + str(self.L)].T.dot(dZ)
derivatives["dW" + str(self.L)] = dW
derivatives["db" + str(self.L)] = db
for l in range(self.L - 1, 0, -1):
dZ = dAPrev * self.sigmoid_derivative(store["Z" + str(l)])
dW = 1. / self.n * dZ.dot(store["A" + str(l - 1)].T)
db = 1. / self.n * np.sum(dZ, axis=1, keepdims=True)
if l > 1:
dAPrev = store["W" + str(l)].T.dot(dZ)
derivatives["dW" + str(l)] = dW
derivatives["db" + str(l)] = db
return derivatives
def fit(self, X, Y, learning_rate=0.01, n_iterations=2500):
np.random.seed(1)
self.n = X.shape[0]
self.layers_size.insert(0, X.shape[1])
self.initialize_parameters()
for loop in range(n_iterations):
A, store = self.forward(X)
cost = np.squeeze(-(Y.dot(np.log(A.T)) + (1 - Y).dot(np.log(1 - A.T))) / self.n)
derivatives = self.backward(X, Y, store)
for l in range(1, self.L + 1):
self.parameters["W" + str(l)] = self.parameters["W" + str(l)] - learning_rate * derivatives[
"dW" + str(l)]
self.parameters["b" + str(l)] = self.parameters["b" + str(l)] - learning_rate * derivatives[
"db" + str(l)]
if loop % 100 == 0:
print(cost)
self.costs.append(cost)
def predict(self, X, Y):
A, cache = self.forward(X)
n = X.shape[0]
p = np.zeros((1, n))
for i in range(0, A.shape[1]):
if A[0, i] > 0.5:
p[0, i] = 1
else:
p[0, i] = 0
print("Accuracy: " + str(np.sum((p == Y) / n)))
def plot_cost(self):
plt.figure()
plt.plot(np.arange(len(self.costs)), self.costs)
plt.xlabel("epochs")
plt.ylabel("cost")
plt.show()
def get_binary_dataset():
train_x_orig, train_y_orig, test_x_orig, test_y_orig = mnist.get_data()
index_5 = np.where(train_y_orig == 5)
index_8 = np.where(train_y_orig == 8)
index = np.concatenate([index_5[0], index_8[0]])
np.random.seed(1)
np.random.shuffle(index)
train_y = train_y_orig[index]
train_x = train_x_orig[index]
train_y[np.where(train_y == 5)] = 0
train_y[np.where(train_y == 8)] = 1
index_5 = np.where(test_y_orig == 5)
index_8 = np.where(test_y_orig == 8)
index = np.concatenate([index_5[0], index_8[0]])
np.random.shuffle(index)
test_y = test_y_orig[index]
test_x = test_x_orig[index]
test_y[np.where(test_y == 5)] = 0
test_y[np.where(test_y == 8)] = 1
return train_x, train_y, test_x, test_y
def pre_process_data(train_x, test_x):
# Normalize
train_x = train_x / 255.
test_x = test_x / 255.
return train_x, test_x
if __name__ == '__main__':
train_x, train_y, test_x, test_y = get_binary_dataset()
train_x, test_x = pre_process_data(train_x, test_x)
print("train_x's shape: " + str(train_x.shape))
print("test_x's shape: " + str(test_x.shape))
layers_dims = [196, 1]
ann = ANN(layers_dims)
ann.fit(train_x, train_y, learning_rate=0.1, n_iterations=1000)
ann.predict(train_x, train_y)
ann.predict(test_x, test_y)
ann.plot_cost()
You can access the full project here:
Conclusion
I hope that this tutorial provides a detail view on backpropagation algorithm. Since backpropagation is the backbone of any Neural Network, it’s important to understand in depth. We can make many optimization from this point onwards for improving the accuracy, faster computation etc. Next we will see how to implement the same using both Tensorflow and PyTorch.
Below are the articles on implementing the Neural Network using TensorFlow and PyTorch.
