Tree - Diameter of a Binary Tree

All diagrams presented herein are original creations, meticulously designed to enhance comprehension and recall. Crafting these aids required considerable effort, and I kindly request attribution if this content is reused elsewhere.

Difficulty : Easy

PostOrder DFS

Problem

Given the root of a binary tree, return the length of the diameter of the tree. The diameter of a binary tree is the length of the longest path between any two nodes in a tree. This path may or may not pass through the root. The length of a path between two nodes is represented by the number of edges between them.

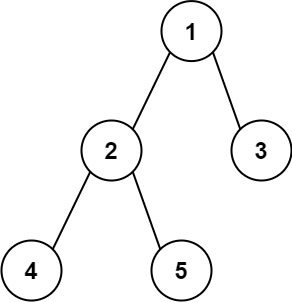

Example 1:

Input: root = [1,2,3,4,5]
Output: 3
Explanation: 3 is the length of the path [4,2,1,3] or [5,2,1,3].

Example 2:

Input: root = [1,2]
Output: 1

Solution

• The diameter can be calculated by using the height of left and right sub-tree. Hence in every traversal the height of the tree needed to be returned.

• In order the math to work out, notice calculation of the base case scenario.
  • The height of the None node is set to -1.
  • The calculation of diameter is 2+left_height+right_height.
  • The calculation of height is 1+max(left_height, right_height).
• Using post order traversal the diameter at every node will be calculated from bottom-up, this way the TC will be O(n)

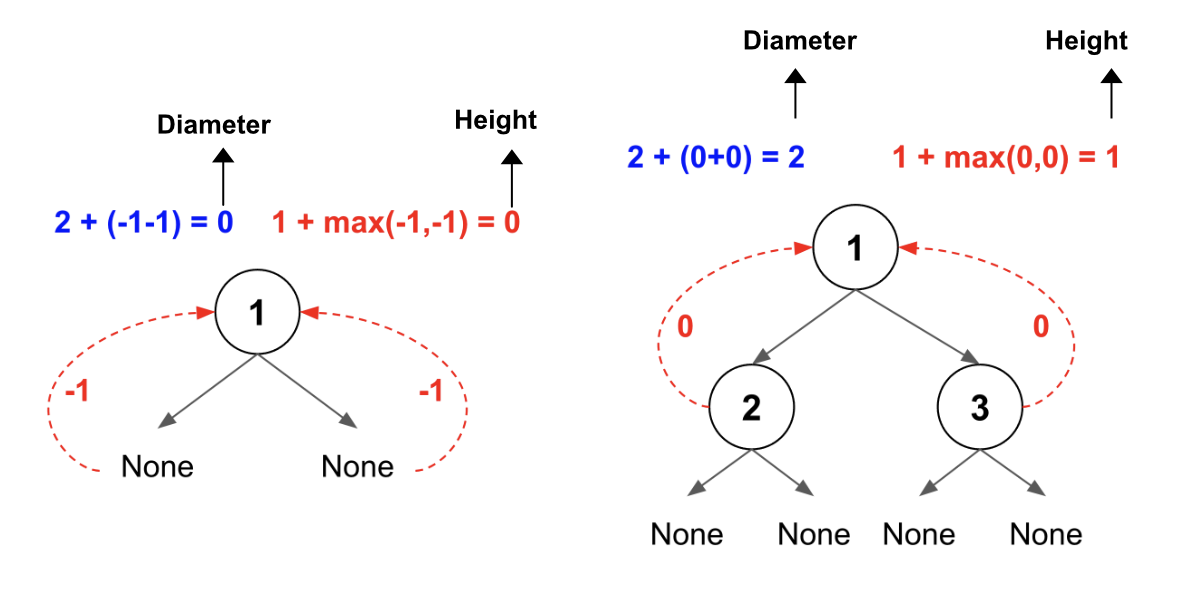

Below are two examples of how both diameter and height are calculated.

Let’s start with a result array which will hold diameters from every node of the tree. Then we can find the max and return that.

diameters = []

We will be using PostOrder DFS (BFS can also be used). Starting with the base case, as we have already discussed, the height of None node is -1 (this is mostly for the math to work for any tree).

def dfs(root):
  if not root:
    return -1

Now calculate the left and right height of the root node. For a node with no leaf node, will have left_height = -1 and right_height = -1 returned from base condition (As shown in the diagram above).

  left_height = dfs(root.left)
  right_height = dfs(root.right)

Calculate the diameter.

  diameter = 2 + left_height + right_height

Append the diameter to diameters array.

  diameters.append(diameter)

Now need to calculate the height to be returned.

  height = 1 + max( left_height, right_height)
  return height

Finally invoke the dfs() function and return max from the diameters array.

dfs(root)
return max(diameters)

Final Code

Here is the full code.

# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right

def diameter_of_binary_tree(root:TreeNode):
  diameters = []

  def dfs(root):
    if not root:
      return -1

    left_height = dfs(root.left)
    right_height = dfs(root.right)

    diameter = 2 + left_height + right_height
    diameters.append(diameter)

    height = 1 + max(left_height,right_height)
    return height

  dfs(root)
  return max(diameters)
